| Nominal Diameter |
DN50 |
DN80 |
DN100 |
DN150 |
DN200 |
| Foam Concentrate Inlet Diameter |
DN25 |
DN40 |
DN40 |
DN50 |
DN65 |
| Nominal Flow Range (L/min) |
75-1000 |
200-3200 |
400-6200 |
1000-11500 |
3000-20000 |
| Length |
1000mm |
| Connection Type |
Flanged ANSI B 16.5, 150#, RF |
| Proportioning Ratio |
3% |
| Max. Working Pressure |
12bar (175psi) |
| Hydrostatic Test Pressure |
18bar (263psi) |
| Body Material |
Carbon Steel Exterior / Stainless Steel Internal |
| Valve Material |
Stainless Steel |
| Approval |
UL Listed with AFFF 3% and AR-AFFF 3×3% |

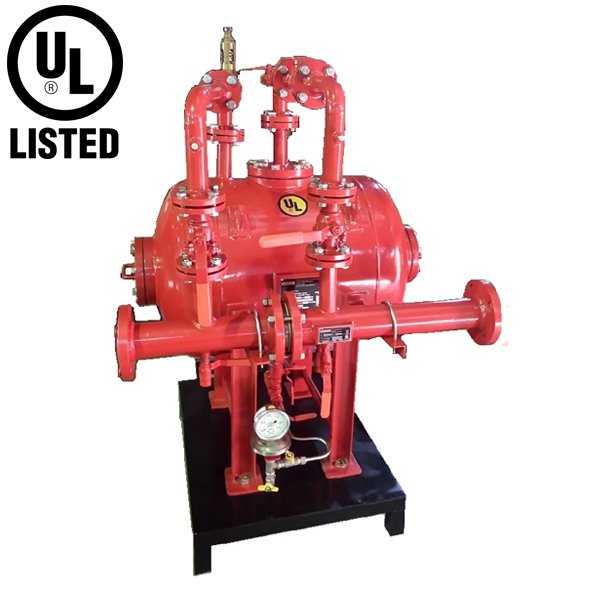

| BLADDER TANK |
| Complete with Pre-piping/Trim to Bladder Tank |
| Capacity (L) |
200-15000 |
2500-15000 |
| Orientation |
Vertical / Horizontal |
| Design Code |
ASME Sec.VIII Div.I Latest Edition |
| Max. Working Pressure |
12bar (175psi) |
| Hydrostatic Test Pressure |
18bar (263psi) |
| Bladder Material |
Nylon Reinforced Nitrile Rubber (BUNA-N) |
| Spool Piece Material |
Carbon Steel |
| Foam Piping Material |
Stainless Steel |
| Water Piping Material |
Carbon Steel |
| Relief Valve Material |
Copper Alloy / Stainless Steel |
| Tank Material |
Carbon Steel |
| Internal Finishing |
Coal Tar Epoxy |
| External Finishing |
Painted Epoxy Flame Red (RAL 3000) |
