Application

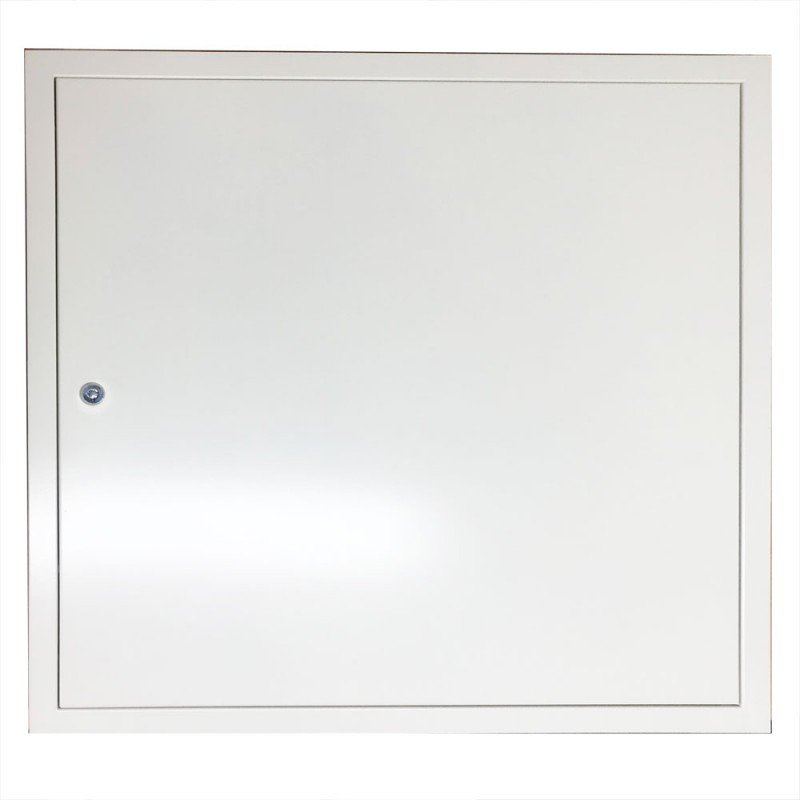

Four side metal doors flush with a wall surface which provides a closure over a valve or other operable device which is recessed into the wall.
The Access Panel frame is intended to be used in steel stiffened and honeycomb type doors.
The Access Panel frame should use with 0.8 to 1.5 mm Galvanized sheet as per the approvals.
The Access Panel is welded from as per the Approval for the fire door.
Advantages
- Access control panels are the best option for businesses and industrial buildings.
- The use of Access panels is now a good option compared to the standard or engineering doors
- The access doors can be used in areas that require high security
Certified Approval
BS 476 part 22 standards
Integrity up to 240 minutes
Description
| Approval | Standard | Infill | Door | Range | Leaf Height (mm) | Leaf width (mm) | Max Area (sq.m) | Fire Rating (Min) |
| Intertek | BS 476-Part 22: 1987 | Honey comb | Double | From | 2642 | 872 | 2.3 | 30/60/90/120 |
| To | 2110 | 1092 | ||||||
| Intertek | BS 476-Part 22: 1987 | Honey comb | Double | From | 2438 | 875 | 2.3 | 180 |
| To | 2117 | 1008 | ||||||
| Intertek | BS 476-Part 22: 1987 | Honey comb | Double | Max | 2032 | 840 | 1.706 | 240 |
| Intertek | BS 476-Part 22: 1987 | Honey comb | Single | From | 2642 | 918 | 2.425 | 30/60/90/120 |
| To | 2110 | 1149 | ||||||
| Intertek | BS 476-Part 22: 1987 | Honey comb | Single | From | 2438 | 921 | 2.425 | 180 |
| To | 2117 | 1060 | ||||||
| Intertek | BS 476-Part 22: 1987 | Honey comb | Single | Max | 2032 | 884 | 1.796 | 240 |
| Intertek | BS 476-Part 22: 1987 | Rockwool | Double | From | 2337 | 877 | 2.049 | 30/60/90/120 |
| To | 2120 | 966 | ||||||
| Intertek | BS 476-Part 22: 1987 | Rockwool | Double | Max | 2032 | 840 | 1.706 | 160 |
| Q-MARK | BS 476-Part 22: 1987 | Honey comb | Single | From | 2456 | 991 | 2.433 | 120 |
| To | 2230 | 1092 | ||||||
| Q-MARK | BS 476-Part 22: 1987 | Honey comb | Double door | From | 2456 | 991 | 2.433 | 120 |
| To | 2230 | 1092 | ||||||
| Q-MARK | BS 476-Part 22: 1987 | Rockwool | Single door | From | 2438 | 1092 | 2.662 | 90 |
| To | 2686 | 991 | ||||||
| Q-MARK | BS 476-Part 22: 1987 | Rockwool | Double door | From | 2438 | 1092 | 2.662 | 120 |
| To | 2686 | 991 |
