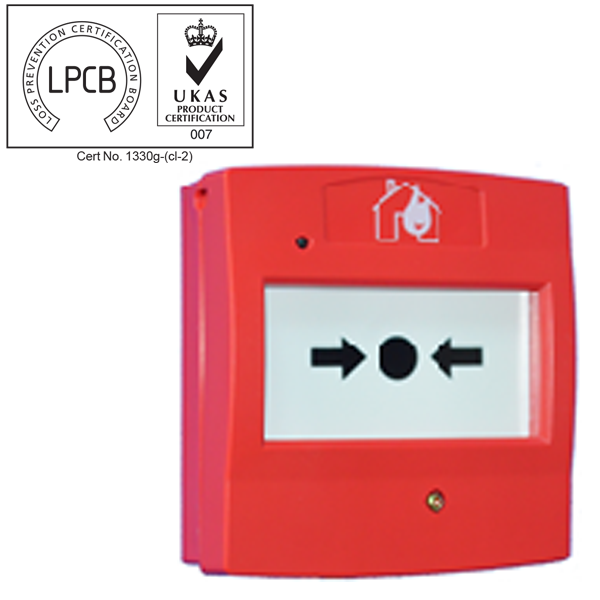

| MODEL | IGN-8401 |
| Compliance | EN 54-11:2001 + A1:2005 |
| Input Voltage | 24VDC [16V to 28V] |
| Current Consumption | Standby 0.6mA, Alarm: 1.8mA |
| Protocol/Addressing | T&A, Value range from 1 to 254 |
| Indicator | Single LED / 360 degree Visual |
| Material / Color | Fireproof ABS / RED Glossy finishing |
| Dimension / Height | 89 mm x 93 mm x 35 mm |
| Weight | 102g (with Base), 80g (without Base) |
| Class | Type A, Indoors |
| Operating Temperature | -10°C to +55°C |
| Humidity | 0 to 95% Relative Humidity, Non condensing |
