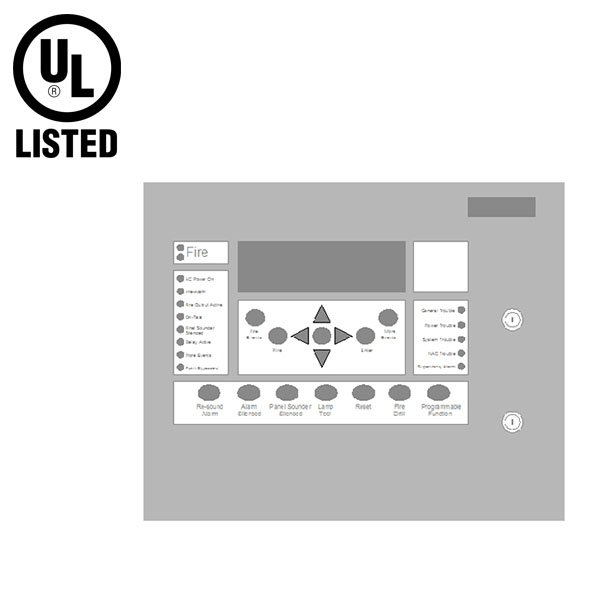

| MODEL | ADX-NANN |
| Standard | ANSI/UL 864 |
| Input DC | 24VDC @ 270mA Max. ( + Aux. Power Load) |
| Aux. Output DC | 24VDC @ 500mA |
| Dimensions | 14.5″ W x 10″ H x 3.3″ D |
| Weight | 9.4 lbs |
| Color | Red |
| Material | ABS/steel enclosure |
| Operating Temp. | 32°F (0°C) 120°F (49°C) |
| Operating Temp. | 32°F (0°C) 120°F (49°C) |
| Relative Humidity | 85% RH Non-Condensing |
| Relative Humidity | 85% RH Non-Condensing |
| Display | 8 line x 40 character LCD (320 characters total) |
| Network | Dual RS485 ports (64 nodes max.) |
| Relay Outputs | (4) Form C 1amp@30VDC |
| PC Port | RS232 |
| Printer Port | RS232 |
| Expansion Port | RS485 (for optional expansion boards) |
Additional information
| Brand |
|---|
